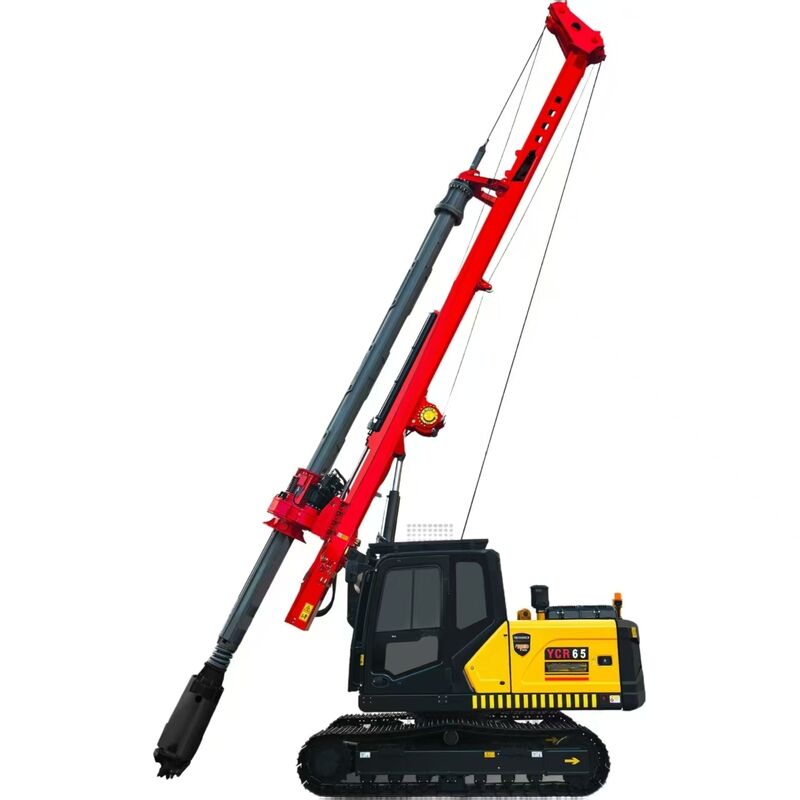

RO-65E Rotary Drilling Rig
FEATURES:
The RO-65E rotary drilling rig is suitable for construction projects such as drilling tower foundation piles and wells. The diameter of a single drilling hole for tower foundation piles and wells can reach up to 1.2 meters, and the fastest drilling speed for wells is 1 hour.
1.Deeper hole formation: Stronger hole formation capability, with a depth of up to approximately 27 meters, capable of supporting large-diameter piles.
2. Flexible transportation: Transport with rods, reducing transportation costs. The fastest transportation time is only 20 minutes, facilitating quick disassembly and transportation.
3. Economical and practical: Superior performance, economical and practical, with a more competitive overall operating cost, saving 15% of fuel.
4. Strong adaptability: The detachable low clearance mast can adapt to various working conditions and space limitations.
5. Powerful: Dual power head motors provide strong output torque.
6. Flexible turning: Large driving force for walking, strong climbing ability; dedicated chassis design, small size, low center of gravity, and reliable and flexible walking.
7. Intelligent detection: Visual operation monitoring system, displaying real-time operation status data.
| RO-65E Performance Parameter | |
| Chassis | |
| Engine type (Euro III) | YC4DK115 |
| Engine power / speed(Euro III) | 86kW/2200rpm |
| Engine type (Euro IV) | YCF36125 |
| Engine power / speed(Euro IV) | 92kW/2200rpm |
| Traction | 121KN |
| Power head | |
| Maximum output torque | 65kN·m |
| Power head speed | 0~35rpm |
| Maximum applied pressure | 60KN |
| Maximum lift-off force | 100KN |
| Stroke of pressurized cylinder | 2000mm |
| Main winch | |
| Maximum lift | 80KN |
| Maximum acceleration | 62m/min |
| Wirerope diameter | φ18mm |
| Auxiliary winch | |
| Maximum lift | 25KN |
| Maximum acceleration | 50m/min |
| Wirerope diameter | Φ12mm |
| Mast Rake | |
| Mast forward angle of inclination | 5° |
| Left and right tilt angle of the mast | ±4° |
| Hydraulic pressure system | |
| Main Pump Maximum Working Pressure | 32MPa |
| Drill hole | |
| Maximum drilling diameter | 1200mm |
| Maximum borehole depth | 27m |
| Main engine | |
| Operating Weight | 20t |
| Shipping Weight | 16t |
| Transport dimensions (L*W*H) | 11520*2600*3480mm |
| Working dimensions (L*W*H) | 5300*2600*12460mm |
| Recommended drill pipe model | |
| Friction / Auto-lock Kelly Bar Configuration | MZ/JSφ299-4*7.6m |
